9GC7 | pdb_00009gc7

Mineralocorticoid receptor in complex with acylurea antagonists.

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.46 Å
  • R-Value Free:
    0.210 (Depositor), 0.205 (DCC)
  • R-Value Work:
    0.186 (Depositor), 0.179 (DCC)
  • R-Value Observed:
    0.187 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history.


Literature

Mineralocorticoid receptor antagonists with an acylurea as a key polar interaction motif

Aaagaard, A., Bamberg, K., Barlind, L., Edman, K., Fredenwall, M., Granberg, K.L., Hansson, E., Hogner, A., Ivarsson, I., Johansson, M., Johansson, U., Karlsson, U., Lindberg, J., Lindmarg, B., Liu, D., Nordqvist, A., O'Mahony, G., Sorensen, H., William-Olsson, L., Yuan, Z.Q.

To be published.

Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure

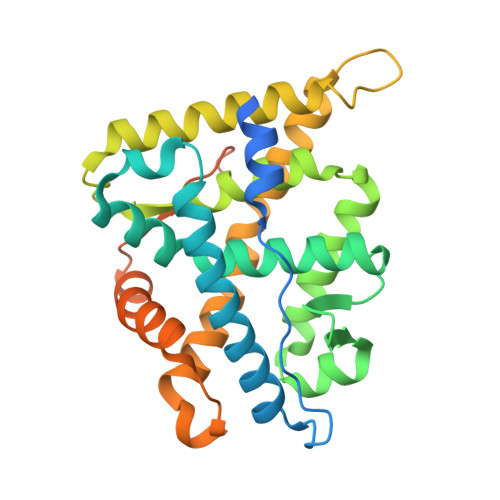

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Mineralocorticoid receptor305Homo sapiensMutation(s): 3
Gene Names: NR3C2, MCR, MLR
UniProt & NIH Common Fund Data Resources
Find proteins for P08235 (Homo sapiens)
Explore P08235
Go to UniProtKB:  P08235
PHAROS:  P08235
GTEx:  ENSG00000151623
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08235
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

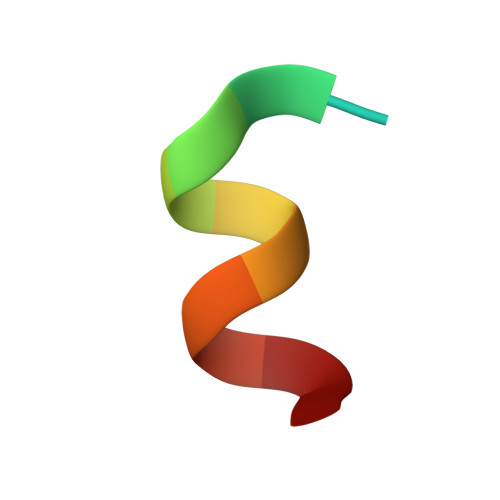

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Nuclear receptor coactivator 112Homo sapiensMutation(s): 0
Gene Names: NCOA1, BHLHE74, SRC1
EC: 2.3.1.48
UniProt & NIH Common Fund Data Resources
Find proteins for Q15788 (Homo sapiens)
Explore Q15788
Go to UniProtKB:  Q15788
PHAROS:  Q15788
GTEx:  ENSG00000084676
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15788
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1IJ6 (Subject of Investigation/LOI)
Query on A1IJ6
Download Ideal Coordinates CCD File
E [auth A](2S)-N-aminocarbonyl-2-[(4-cyano-6-cyclopropyl-cyclohexa-1,2,3,5-tetraen-1-yl)amino]propanamide
C14 H14 N4 O2
BZGASCWVHGFRKP-QMMMGPOBSA-N
NHE
Query on NHE
Download Ideal Coordinates CCD File
D [auth A]2-[N-CYCLOHEXYLAMINO]ETHANE SULFONIC ACID
C8 H17 N O3 S
MKWKNSIESPFAQN-UHFFFAOYSA-N
MPD
Query on MPD
Download Ideal Coordinates CCD File
C [auth A](4S)-2-METHYL-2,4-PENTANEDIOL
C6 H14 O2
SVTBMSDMJJWYQN-YFKPBYRVSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.46 Å
  • R-Value Free:  0.210 (Depositor), 0.205 (DCC)
  • R-Value Work:  0.186 (Depositor), 0.179 (DCC)
  • R-Value Observed: 0.187 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 48.472α = 90
b = 77.789β = 90
c = 78.055γ = 90
Software Package:
Software NamePurpose
BUSTERrefinement
MOSFLMdata reduction
SCALAdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



View more in-depth experimental data
Entry History & Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2026-02-18
    Type: Initial release
