9N9N | pdb_00009n9n

Crystal structure of KRAS(G12C) bound to the cyclic peptide UNC10415730A

PDB DOI: https://doi.org/10.2210/pdb9N9N/pdb

Classification: ONCOPROTEIN
Organism(s): Homo sapiens, synthetic construct
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2025-02-11 Released: 2026-02-18
Deposition Author(s): Rossman, K.L.
Funding Organization(s): National Institutes of Health/National Cancer Institute (NIH/NCI)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.24 Å
R-Value Free:
0.198 (Depositor), 0.198 (DCC)
R-Value Work:
0.174 (Depositor), 0.174 (DCC)
R-Value Observed:
0.174 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of KRAS(G12C) bound to the cyclic peptide UNC10415730A

Betts, L., Iskandar, S.E., Bowers, A.A., Rossman, K.L.

To be published.

Macromolecule Content

Total Structure Weight: 43.11 kDa
Atom Count: 3,255
Modeled Residue Count: 362
Deposited Residue Count: 368
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

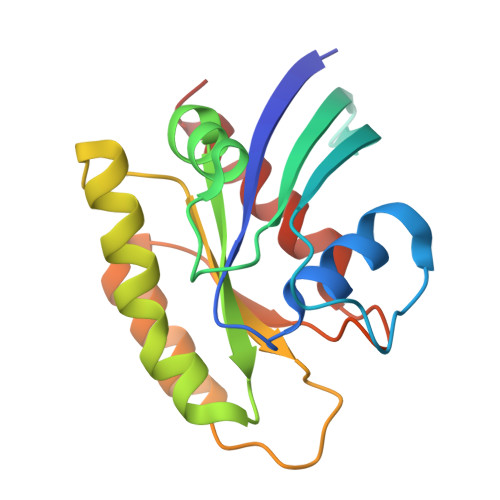

Isoform 2B of GTPase KRas	A, B	171	Homo sapiens	Mutation(s): 1 Gene Names: KRAS, KRAS2, RASK2 EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens) Go to UniProtKB: P01116
PHAROS: P01116 GTEx: ENSG00000133703
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P01116-2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
cyclic peptide UNC10415730A	C, D	13	synthetic construct	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GDP Query on GDP Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain H [auth B] MOL2 format, chain E [auth A] MOL2 format, chain H [auth B] mmCIF format, chain E [auth A] mmCIF format, chain H [auth B]	E [auth A], H [auth B]	GUANOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₁ P₂ QGWNDRXFNXRZMB-UUOKFMHZSA-N		Interactions Focus chain E [auth A] Focus chain H [auth B] Interactions & Density Focus chain E [auth A] Focus chain H [auth B]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain J [auth B] SDF format, chain K [auth B] MOL2 format, chain G [auth A] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] mmCIF format, chain G [auth A] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B]	G [auth A], J [auth B], K [auth B]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain J [auth B] Focus chain K [auth B] Interactions & Density Focus chain G [auth A] Focus chain J [auth B] Focus chain K [auth B]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain I [auth B] MOL2 format, chain F [auth A] MOL2 format, chain I [auth B] mmCIF format, chain F [auth A] mmCIF format, chain I [auth B]	F [auth A], I [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain I [auth B] Interactions & Density Focus chain F [auth A] Focus chain I [auth B]
