2FJP | pdb_00002fjp

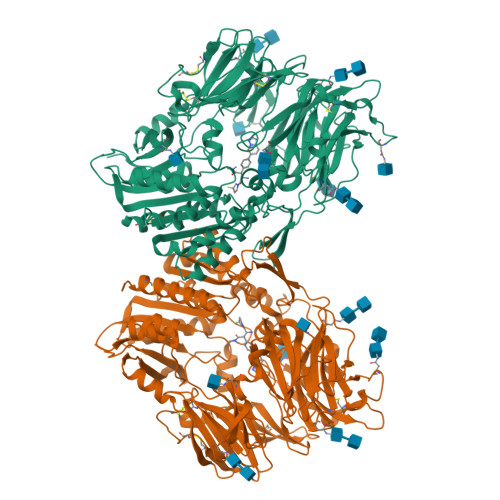

Human dipeptidyl peptidase IV/CD26 in complex with an inhibitor


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free:
    0.240 (Depositor), 0.230 (DCC)
  • R-Value Work:
    0.194 (Depositor), 0.190 (DCC)
  • R-Value Observed:
    0.198 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted S14Click on this verticalbar to view detailsBest fitted NAGClick on this verticalbar to view details

This is version 2.3 of the entry. See complete history


Literature

(2S,3S)-3-Amino-4-(3,3-difluoropyrrolidin-1-yl)-N,N-dimethyl-4-oxo-2-(4-[1,2,4]triazolo[1,5-a]- pyridin-6-ylphenyl)butanamide: a selective alpha-amino amide dipeptidyl peptidase IV inhibitor for the treatment of type 2 diabetes.

Edmondson, S.D.Mastracchio, A.Mathvink, R.J.He, J.Harper, B.Park, Y.J.Beconi, M.Di Salvo, J.Eiermann, G.J.He, H.Leiting, B.Leone, J.F.Levorse, D.A.Lyons, K.Patel, R.A.Patel, S.B.Petrov, A.Scapin, G.Shang, J.Roy, R.S.Smith, A.Wu, J.K.Xu, S.Zhu, B.Thornberry, N.A.Weber, A.E.

(2006) J Med Chem 49: 3614-3627

  • DOI: https://doi.org/10.1021/jm060015t
  • Primary Citation of Related Structures:
    2FJP

  • PubMed Abstract:

    A series of beta-substituted biarylphenylalanine amides were synthesized and evaluated as inhibitors of dipeptidyl peptidase IV (DPP-4) for the treatment of type 2 diabetes. Optimization of the metabolic profile of early analogues led to the discovery of (2S,3S)-3-amino-4-(3,3-difluoropyrrolidin-1-yl)-N,N-dimethyl-4-oxo-2-(4-[1,2,4]triazolo[1,5-a]pyridin-6-ylphenyl)butanamide (6), a potent, orally active DPP-4 inhibitor (IC(50) = 6.3 nM) with excellent selectivity, oral bioavailability in preclinical species, and in vivo efficacy in animal models. Compound 6 was selected for further characterization as a potential new treatment for type 2 diabetes.


  • Organizational Affiliation

    Department of Medicinal Chemistry, Merck Research Laboratories, Merck & Co., Inc., Rahway, New Jersey 07065, USA. scott_edmondson@merck.com


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Dipeptidyl peptidase 4
A, B
728Homo sapiensMutation(s): 1
Gene Names: DPP4ADCP2CD26
EC: 3.4.14.5
UniProt & NIH Common Fund Data Resources
Find proteins for P27487 (Homo sapiens)
Explore P27487
Go to UniProtKB:  P27487
PHAROS:  P27487
GTEx:  ENSG00000197635
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP27487
Glycosylation
Glycosylation Sites: 8Go to GlyGen: P27487-1
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 2
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
C, D, E, F, G
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G42666HT
GlyCosmos:  G42666HT
GlyGen:  G42666HT
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
S14
Query on S14

Download Ideal Coordinates CCD File
O [auth A],
S [auth B]
6-(4-{(1S,2S)-2-AMINO-1-[(DIMETHYLAMINO)CARBONYL]-3-[(3S)-3-FLUOROPYRROLIDIN-1-YL]-3-OXOPROPYL}PHENYL)-1H-[1,2,4]TRIAZOLO[1,5-A]PYRIDIN-4-IUM
C22 H25 F N6 O2
ZNHVIJAGMFQGMS-IHPCNDPISA-N
NAG
Query on NAG

Download Ideal Coordinates CCD File
L [auth A]
M [auth A]
N [auth A]
P [auth B]
Q [auth B]
2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
S14 BindingDB:  2FJP Ki: 4.3 (nM) from 1 assay(s)
IC50: min: 4, max: 4.3 (nM) from 2 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.40 Å
  • R-Value Free:  0.240 (Depositor), 0.230 (DCC)
  • R-Value Work:  0.194 (Depositor), 0.190 (DCC)
  • R-Value Observed: 0.198 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 118.132α = 90
b = 125.577β = 90
c = 137.068γ = 90
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
CNXrefinement
CNXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted S14Click on this verticalbar to view detailsBest fitted NAGClick on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2006-07-04
    Type: Initial release
  • Version 1.1: 2008-05-01
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Non-polymer description, Version format compliance
  • Version 2.0: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Advisory, Atomic model, Data collection, Derived calculations, Structure summary
  • Version 2.1: 2021-10-20
    Changes: Database references, Structure summary
  • Version 2.2: 2023-08-30
    Changes: Data collection, Refinement description
  • Version 2.3: 2024-10-16
    Changes: Structure summary
