2YWE | pdb_00002ywe

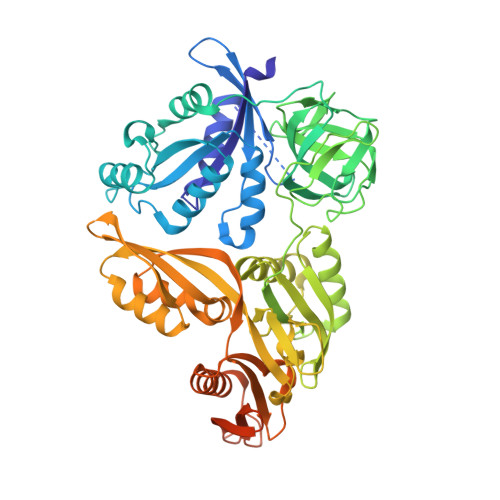

Crystal structure of LepA from Aquifex aeolicus

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.05 Å
  • R-Value Free:
    0.270 (Depositor), 0.270 (DCC)
  • R-Value Work:
    0.227 (Depositor), 0.230 (DCC)
  • R-Value Observed:
    0.227 (Depositor)

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history.


Literature

Crystal structures of GTP-binding protein LepA from Aquifex aeolicus

Kawazoe, M., Takemoto, C., Kaminishi, T., Nishino, A., Nakayama-Ushikoshi, R., Hanawa-Suetsugu, K., Terada, T., Shirouzu, M., Yokoyama, S.

To be published.

Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
GTP-binding protein lepA600Aquifex aeolicus VF5Mutation(s): 0
Gene Names: aq_1725
UniProt
Find proteins for O67618 (Aquifex aeolicus (strain VF5))
Explore O67618
Go to UniProtKB:  O67618
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO67618
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.05 Å
  • R-Value Free:  0.270 (Depositor), 0.270 (DCC)
  • R-Value Work:  0.227 (Depositor), 0.230 (DCC)
  • R-Value Observed: 0.227 (Depositor)
Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 81.57α = 90
b = 115.836β = 90
c = 123.308γ = 90
Software Package:
Software NamePurpose
CNSrefinement
HKL-2000data collection
DENZOdata reduction
SCALEPACKdata scaling
SOLVEphasing

Structure Validation

View Full Validation Report



View more in-depth experimental data
Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2008-04-29
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Source and taxonomy, Version format compliance
  • Version 1.2: 2024-03-13
    Changes: Data collection, Database references
