3HF7 | pdb_00003hf7

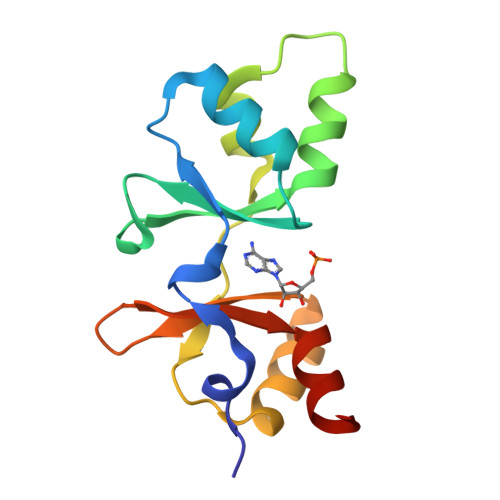

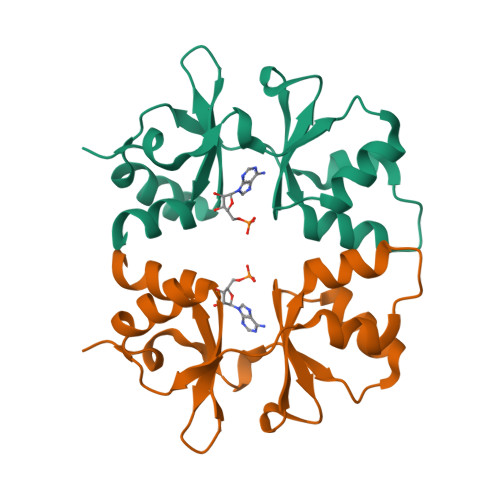

The Crystal Structure of a CBS-domain Pair with Bound AMP from Klebsiella pneumoniae to 2.75A

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free:
    0.278 (Depositor), 0.290 (DCC)
  • R-Value Work:
    0.222 (Depositor), 0.220 (DCC)
  • R-Value Observed:
    0.225 (Depositor)

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted AMPClick on this verticalbar to view details

This is version 1.3 of the entry. See complete history.


Literature

The Crystal Structure of a CBS-domain Pair with Bound AMP from Klebsiella pneumoniae to 2.75A

Stein, A.J., Nocek, B., Wu, R., Bearden, J., Joachimiak, A.

To be published.

Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
uncharacterized CBS-domain protein130Klebsiella pneumoniae subsp. pneumoniae MGH 78578Mutation(s): 0
Gene Names: yfjD, KPN78578_28800, KPN_02935
UniProt
Find proteins for A6TCM0 (Klebsiella pneumoniae subsp. pneumoniae (strain ATCC 700721 / MGH 78578))
Explore A6TCM0
Go to UniProtKB:  A6TCM0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA6TCM0
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
AMP
Query on AMP
Download Ideal Coordinates CCD File
B [auth A]ADENOSINE MONOPHOSPHATE
C10 H14 N5 O7 P
UDMBCSSLTHHNCD-KQYNXXCUSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free:  0.278 (Depositor), 0.290 (DCC)
  • R-Value Work:  0.222 (Depositor), 0.220 (DCC)
  • R-Value Observed: 0.225 (Depositor)
Space Group: H 3 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 101.395α = 90
b = 101.395β = 90
c = 107.745γ = 120
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
REFMACrefinement
PDB_EXTRACTdata extraction
SBC-Collectdata collection
HKL-3000data reduction
HKL-3000phasing
SHELXphasing
MLPHAREphasing
DMphasing
ARP/wARPmodel building
Cootmodel building

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted AMPClick on this verticalbar to view details

View more in-depth experimental data
Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2009-05-26
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Advisory, Source and taxonomy, Version format compliance
  • Version 1.2: 2017-11-01
    Changes: Refinement description
  • Version 1.3: 2024-02-21
    Changes: Data collection, Database references, Derived calculations
