3LLT | pdb_00003llt

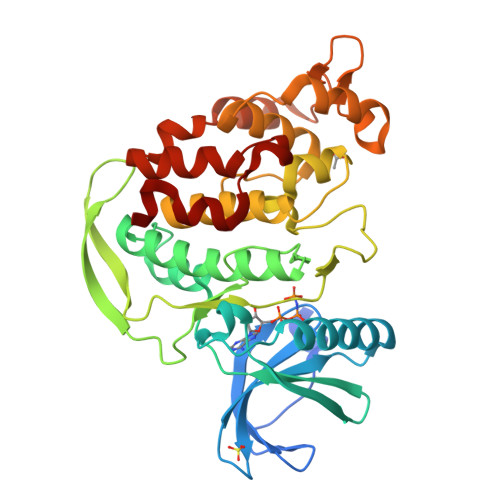

Crystal structure of PF14_0431, kinase domain.

PDB DOI: https://doi.org/10.2210/pdb3LLT/pdb

Classification: TRANSFERASE
Organism(s): Plasmodium falciparum 3D7
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2010-01-29 Released: 2010-08-04
Deposition Author(s): Wernimont, A.K., Tempel, W., Lin, Y.H., Loppnau, P., MacKenzie, F., Sullivan, H., Weadge, J., Kozieradzki, I., Cossar, D., Sinesterra, G., Vedadi, M., Arrowsmith, C.H., Edwards, A.M., Bountra, C., Weigelt, J., Bochkarev, A., Hui, R., Qiu, W., Hutchinson, A., Structural Genomics Consortium (SGC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.50 Å
R-Value Free:
0.267 (Depositor), 0.270 (DCC)
R-Value Work:
0.223 (Depositor), 0.220 (DCC)
R-Value Observed:
0.225 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.4 of the entry. See complete history.

Literature

Crystal structure of PF14_0431, kinase domain.

Wernimont, A.K., Tempel, W., Lin, Y.H., Loppnau, P., MacKenzie, F., Sullivan, H., Weadge, J., Kozieradzki, I., Cossar, D., Sinesterra, G., Vedadi, M., Arrowsmith, C.H., Edwards, A.M., Bountra, C., Weigelt, J., Bochkarev, A., Hui, R., Qiu, W., Hutchinson, A.

To be published.

Macromolecule Content

Total Structure Weight: 42.85 kDa
Atom Count: 2,867
Modelled Residue Count: 341
Deposited Residue Count: 360
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Serine/threonine kinase-1, PfLammer	A	360	Plasmodium falciparum 3D7	Mutation(s): 0 Gene Names: LAMMER, PF14_0431 EC: 2.7.11.1
UniProt
Find proteins for Q8IL19 (Plasmodium falciparum (isolate 3D7)) Explore Q8IL19 Go to UniProtKB: Q8IL19
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q8IL19
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ANP Query on ANP Download Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER C₁₀ H₁₇ N₆ O₁₂ P₃ PVKSNHVPLWYQGJ-KQYNXXCUSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
SO4 Query on SO4 Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
ACT Query on ACT Download Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	ACETATE ION C₂ H₃ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-M		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.50 Å
R-Value Free: 0.267 (Depositor), 0.270 (DCC)
R-Value Work: 0.223 (Depositor), 0.220 (DCC)
R-Value Observed: 0.225 (Depositor)

Space Group: P 6₅

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 140.081	α = 90
b = 140.081	β = 90
c = 52.418	γ = 120

Software Package:

Software Name	Purpose
DENZO	data reduction
SCALEPACK	data scaling
PHASER	phasing
REFMAC	refinement
PDB_EXTRACT	data extraction
MxDC	data collection

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Deposition Data

Released Date: 2010-08-04

Deposition Author(s):

Structural Genomics Consortium (SGC)

Revision History (Full details and data files)

Version 1.0: 2010-08-04
Type: Initial release
Version 1.1: 2011-07-13
Changes: Version format compliance
Version 1.2: 2017-11-01
Changes: Refinement description
Version 1.3: 2018-01-24
Changes: Database references, Structure summary
Version 1.4: 2023-09-06
Changes: Data collection, Database references, Derived calculations, Refinement description
