8A1A | pdb_00008a1a

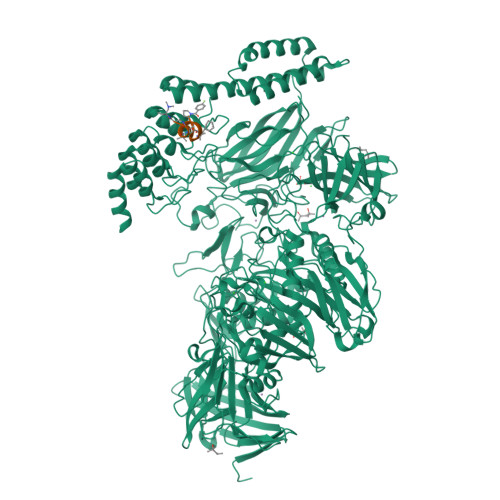

Structure of a leucinostatin derivative determined by host lattice display : L1F11V1 construct

PDB DOI: https://doi.org/10.2210/pdb8A1A/pdb

Classification: DE NOVO PROTEIN
Organism(s): synthetic construct
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2022-06-01 Released: 2022-12-07
Deposition Author(s): Mittl, P.R.E.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.05 Å
R-Value Free:
0.185 (Depositor), 0.180 (DCC)
R-Value Work:
0.161 (Depositor), 0.160 (DCC)
R-Value Observed:
0.163 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.2 of the entry. See complete history.

Literature

Structure of a hydrophobic leucinostatin derivative determined by host lattice display.

Kiss, C., Gall, F.M., Dreier, B., Adams, M., Riedl, R., Pluckthun, A., Mittl, P.R.E.

(2022) Acta Crystallogr D Struct Biol 78: 1439-1450

PubMed: 36458615 Search on PubMed
DOI: https://doi.org/10.1107/S2059798322010762
Primary Citation of Related Structures:
8A19, 8A1A

PubMed Abstract:
Peptides comprising many hydrophobic amino acids are almost insoluble under physiological buffer conditions, which complicates their structural analysis. To investigate the three-dimensional structure of the hydrophobic leucinostatin derivative ZHAWOC6027, the previously developed host lattice display technology was applied. Two designed ankyrin-repeat proteins (DARPins) recognizing a biotinylated ZHAWOC6027 derivative were selected from a diverse library by ribosome display under aqueous buffer conditions. ZHAWOC6027 was immobilized by means of the DARPin in the host lattice and the structure of the complex was determined by X-ray diffraction. ZHAWOC6027 adopts a distorted α-helical conformation. Comparison with the structures of related compounds that have been determined in organic solvents reveals elevated flexibility of the termini, which might be functionally important.

Organizational Affiliation

Department of Biochemistry, University of Zürich, Winterthurerstrasse 190, 8057 Zürich, Switzerland.

Macromolecule Content

Total Structure Weight: 149.24 kDa
Atom Count: 12,109
Modelled Residue Count: 1,356
Deposited Residue Count: 1,358
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
L1F11v1	A	1,347	synthetic construct	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence LOADING

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
6-(2-methoxyethoxy)-11,15-dimethyl-8-oxa-2,11,15,19,21,23-hexazatetracyclo[15.6.1.13,7.020,24]pentacosa-1(23),3(25),4,6,17,20(24),21-heptaen-10-one	B	11	synthetic construct	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MES Query on MES Download Ideal Coordinates CCD File SDF format, chain K [auth A] MOL2 format, chain K [auth A] mmCIF format, chain K [auth A]	K [auth A]	2-(N-MORPHOLINO)-ETHANESULFONIC ACID C₆ H₁₃ N O₄ S SXGZJKUKBWWHRA-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Interactions & Density Focus chain K [auth A]
MPD Query on MPD Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A]	G [auth A], H [auth A], I [auth A], J [auth A]	(4S)-2-METHYL-2,4-PENTANEDIOL C₆ H₁₄ O₂ SVTBMSDMJJWYQN-YFKPBYRVSA-N		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A]
MN Query on MN Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A]	C [auth A], D [auth A], E [auth A], F [auth A]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A]	L [auth A], M [auth A], N [auth A], O [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Interactions & Density Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A]

Modified Residues 2 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
AIB Query on AIB	B	L-PEPTIDE LINKING	C₄ H₉ N O₂		ALA
HPE Query on HPE	B	L-PEPTIDE LINKING	C₁₀ H₁₃ N O₂		PHE

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.05 Å
R-Value Free: 0.185 (Depositor), 0.180 (DCC)
R-Value Work: 0.161 (Depositor), 0.160 (DCC)
R-Value Observed: 0.163 (Depositor)

Diffraction Data: https://doi.org/10.18430/M38A1A

Space Group: P 6₅

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 191.866	α = 90
b = 191.866	β = 90
c = 122.409	γ = 120

Software Package:

Software Name	Purpose
BUSTER	refinement
autoPROC	data reduction
autoPROC	data scaling
BUSTER	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2022-12-07

Deposition Author(s):

Mittl, P.R.E.

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2022-12-07
Type: Initial release
Version 1.1: 2022-12-14
Changes: Database references
Version 1.2: 2024-01-31
Changes: Data collection, Derived calculations, Refinement description
