9O5T | pdb_00009o5t

Crystal structure of chimeric SARS-CoV-2 RBD complexed with chimeric Rhinolophus sinicus ACE2

PDB DOI: https://doi.org/10.2210/pdb9O5T/pdb

Classification: HYDROLASE/VIRAL PROTEIN
Organism(s): Rhinolophus sinicus, Severe acute respiratory syndrome coronavirus 2
Expression System: Spodoptera frugiperda
Mutation(s): No

Deposited: 2025-04-10 Released: 2026-01-28
Deposition Author(s): Hsueh, F.-C., Shi, K., Aihara, H., Li, F.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Institutes of Health/National Institute of Arthritis and Musculoskeletal and Skin Diseases (NIH/NIAMS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.90 Å
R-Value Free:
0.251 (Depositor), 0.251 (DCC)
R-Value Work:
0.206 (Depositor), 0.206 (DCC)
R-Value Observed:
0.208 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Crystal structure of chimeric SARS-CoV-2 RBD complexed with chimeric Rhinolophus sinicus ACE2

Hsueh, F.-C., Shi, K., Aihara, H., Li, F.

To be published.

Macromolecule Content

Total Structure Weight: 194.79 kDa
Atom Count: 12,865
Modeled Residue Count: 1,566
Deposited Residue Count: 1,670
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

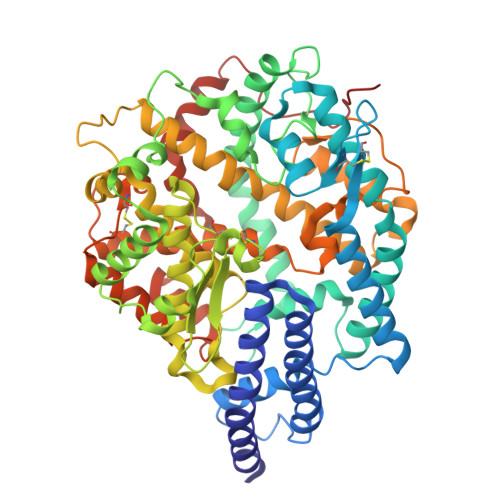

ACE2	A, B	603	Rhinolophus sinicus	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Glycosylation
Glycosylation Sites: 3	Glycosylation Focus chain A Focus chain B
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

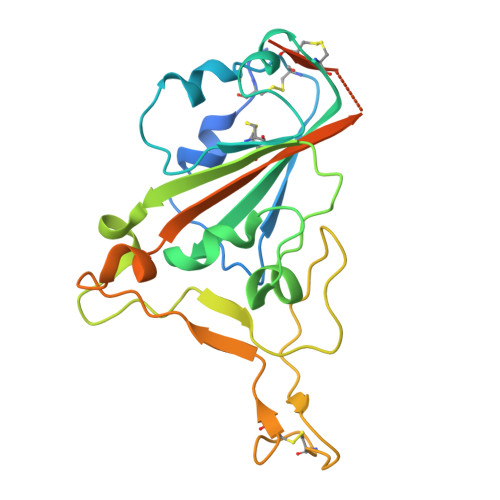

Spike protein S1	C [auth E], D [auth F]	232	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTC2
Glycosylation
Glycosylation Sites: 1	Glycosylation Focus chain D [auth F]	Go to GlyGen: P0DTC2-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	E [auth C]	2		N-Glycosylation	Interactions Focus chain E [auth C] Interactions & Density Focus chain E [auth C]
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	F [auth D]	3		N-Glycosylation	Interactions Focus chain F [auth D] Interactions & Density Focus chain F [auth D]
Glycosylation Resources
GlyTouCan: G15407YE GlyCosmos: G15407YE GlyGen: G15407YE

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain Q [auth B] SDF format, chain R [auth B] SDF format, chain S [auth F] MOL2 format, chain H [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain Q [auth B] MOL2 format, chain R [auth B] MOL2 format, chain S [auth F] mmCIF format, chain H [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain Q [auth B] mmCIF format, chain R [auth B] mmCIF format, chain S [auth F]	H [auth A] J [auth A] K [auth A] Q [auth B] R [auth B] H [auth A], J [auth A], K [auth A], Q [auth B], R [auth B], S [auth F]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain H [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain Q [auth B] Focus chain R [auth B] Focus chain S [auth F] Interactions & Density Focus chain H [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain Q [auth B] Focus chain R [auth B] Focus chain S [auth F]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain L [auth B] MOL2 format, chain G [auth A] MOL2 format, chain L [auth B] mmCIF format, chain G [auth A] mmCIF format, chain L [auth B]	G [auth A], L [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain L [auth B] Interactions & Density Focus chain G [auth A] Focus chain L [auth B]
EDO Query on EDO Download Ideal Coordinates CCD File SDF format, chain N [auth B] SDF format, chain O [auth B] SDF format, chain P [auth B] MOL2 format, chain N [auth B] MOL2 format, chain O [auth B] MOL2 format, chain P [auth B] mmCIF format, chain N [auth B] mmCIF format, chain O [auth B] mmCIF format, chain P [auth B]	N [auth B], O [auth B], P [auth B]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain N [auth B] Focus chain O [auth B] Focus chain P [auth B] Interactions & Density Focus chain N [auth B] Focus chain O [auth B] Focus chain P [auth B]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain M [auth B] MOL2 format, chain M [auth B] mmCIF format, chain M [auth B]	M [auth B]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain M [auth B] Interactions & Density Focus chain M [auth B]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.90 Å
R-Value Free: 0.251 (Depositor), 0.251 (DCC)
R-Value Work: 0.206 (Depositor), 0.206 (DCC)
R-Value Observed: 0.208 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 80.554	α = 90
b = 120.037	β = 92.81
c = 112.399	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
PDB_EXTRACT	data extraction
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2026-01-28

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM124165
National Institutes of Health/National Institute of Arthritis and Musculoskeletal and Skin Diseases (NIH/NIAMS)	United States	AR055685

Revision History (Full details and data files)

Version 1.0: 2026-01-28
Type: Initial release
Version 1.1: 2026-02-18
Changes: Database references, Structure summary
