9SPC | pdb_00009spc

Recombinant human butyrylcholinesterase in complex with ethyl 1-[3-(2-oxopyrrolidin-1-yl)propyl]-2-phenyl-1H-1,3-benzodiazole-5-carboxylate

PDB DOI: https://doi.org/10.2210/pdb9SPC/pdb

Classification: HYDROLASE
Organism(s): Homo sapiens
Expression System: Cricetulus griseus
Mutation(s): Yes

Deposited: 2025-09-16 Released: 2026-02-18
Deposition Author(s): Brazzolotto, X., Ha, Z.Y., Law, C.S.W., Yeong, K.Y.
Funding Organization(s): French Ministry of Armed Forces

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.66 Å
R-Value Free:
0.240 (Depositor), 0.243 (DCC)
R-Value Work:
0.180 (Depositor), 0.185 (DCC)
R-Value Observed:
0.183 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Structure-Guided Design and Synthesis of Selective Butyrylcholinesterase Inhibitors

Law, C.S.W., Ha, Z.Y., Brazzolotto, X., Yeong, K.Y.

(2026) J Mol Struct : 145611

DOI: https://doi.org/10.1016/j.molstruc.2026.145611

Macromolecule Content

Total Structure Weight: 63.47 kDa
Atom Count: 4,612
Modeled Residue Count: 526
Deposited Residue Count: 529
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

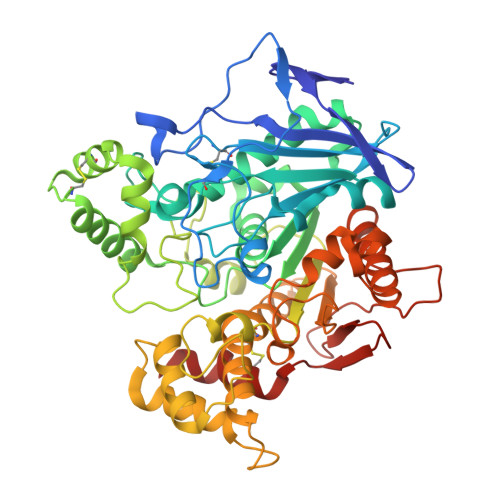

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Cholinesterase	A	529	Homo sapiens	Mutation(s): 4 Gene Names: BCHE, CHE1 EC: 3.1.1.8
UniProt & NIH Common Fund Data Resources
Find proteins for P06276 (Homo sapiens) Explore P06276 Go to UniProtKB: P06276
PHAROS: P06276 GTEx: ENSG00000114200
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P06276
Glycosylation
Glycosylation Sites: 6	Glycosylation Focus chain A	Go to GlyGen: P06276-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	B, E	2		N-Glycosylation	Interactions Focus chain B Focus chain E Interactions & Density Focus chain B Focus chain E

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	C, D	3		N-Glycosylation	Interactions Focus chain C Focus chain D Interactions & Density Focus chain C Focus chain D

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose	F	2		N-Glycosylation	Interactions Focus chain F Interactions & Density Focus chain F

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1JPK (Subject of Investigation/LOI) Query on A1JPK Download Ideal Coordinates CCD File SDF format, chain H [auth A] MOL2 format, chain H [auth A] mmCIF format, chain H [auth A]	H [auth A]	ethyl 1-[3-(2-oxidanylidenepyrrolidin-1-yl)propyl]-2-phenyl-benzimidazole-5-carboxylate C₂₃ H₂₅ N₃ O₃ WJYNZMYLZGFWGH-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Interactions & Density Focus chain H [auth A]
SIA Query on SIA Download Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	N-acetyl-alpha-neuraminic acid C₁₁ H₁₉ N O₉ SQVRNKJHWKZAKO-YRMXFSIDSA-N		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]
NAG Query on NAG Download Ideal Coordinates CCD File SDF format, chain G [auth A] MOL2 format, chain G [auth A] mmCIF format, chain G [auth A]	G [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain G [auth A] Interactions & Density Focus chain G [auth A]
SO4 Query on SO4 Download Ideal Coordinates CCD File SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain N [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A]	J [auth A], K [auth A], L [auth A], M [auth A], N [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Interactions & Density Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A]
