2GDD | pdb_00002gdd

Human beta II tryptase with inhibitor CRA-27592

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.35 Å
  • R-Value Free:
    0.254 (Depositor), 0.246 (DCC)
  • R-Value Work:
    0.215 (Depositor), 0.206 (DCC)
  • R-Value Observed:
    0.219 (Depositor)

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted 5AMClick on this verticalbar to view details

This is version 1.4 of the entry. See complete history.


Literature

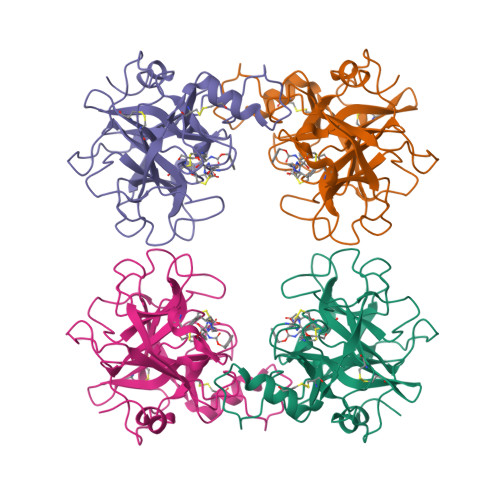

Human beta II tryptase with inhibitor CRA-27592

Somoza, J.R.

To be published.

Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Tryptase beta-2
A, B, C, D
245Homo sapiensMutation(s): 0
Gene Names: TPSB2, TPS2
EC: 3.4.21.59
UniProt & NIH Common Fund Data Resources
Find proteins for P20231 (Homo sapiens)
Explore P20231
Go to UniProtKB:  P20231
PHAROS:  P20231
GTEx:  ENSG00000197253
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20231
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.35 Å
  • R-Value Free:  0.254 (Depositor), 0.246 (DCC)
  • R-Value Work:  0.215 (Depositor), 0.206 (DCC)
  • R-Value Observed: 0.219 (Depositor)
Space Group: P 31
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 78.015α = 90
b = 78.015β = 90
c = 163.98γ = 120
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
CNSrefinement
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted 5AMClick on this verticalbar to view details

View more in-depth experimental data
Entry History

Deposition Data

  • Released Date: 2006-04-11
    • Deposition Author(s): Somoza, J.R.

Revision History  (Full details and data files)

  • Version 1.0: 2006-04-11
    Type: Initial release
  • Version 1.1: 2008-05-01
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2017-10-18
    Changes: Refinement description
  • Version 1.4: 2024-10-30
    Changes: Data collection, Database references, Derived calculations, Structure summary
