9PSS | pdb_00009pss

IRAK4 in Complex with Compound 3


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.93 Å
  • R-Value Free:
    0.283 (Depositor), 0.282 (DCC)
  • R-Value Work:
    0.247 (Depositor), 0.247 (DCC)
  • R-Value Observed:
    0.248 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history


Literature

Examination of Noncanonical Kinase Hinge Binders Leads to Thiadiazoles as Potent IRAK4 Inhibitors.

Ammann, S.E.Brizgys, G.Ferrao, R.D.Wright, N.E.Mukherjee, P.K.Bacon, E.M.Chin, E.Chou, C.Cottell, J.J.Hammond, A.Ndukwe, M.S.Park, G.Y.Shatskikh, M.E.Suekawa-Pirrone, K.Warr, M.R.Yang, Z.Y.Zipfel, S.M.Taylor, J.G.

(2026) ACS Med Chem Lett 17: 175-182

  • DOI: https://doi.org/10.1021/acsmedchemlett.5c00602
  • Primary Citation of Related Structures:
    9PSS, 9PST, 9PSU

  • PubMed Abstract:

    A hallmark of most known small-molecule orthosteric kinase inhibitors is hydrogen-bonding to the hinge-region of the kinase to mimic the hinge interaction of adenine. Herein we report our studies on deviation from canonical hinge-binders in the context of IRAK4 inhibitors. Small-molecule inhibitors of IRAK4 have generated interest as potential treatments for inflammatory diseases. Notably, in our discovery efforts we identified pyridinyl-thiadiazoles as noncanonical hinge-binders. X-ray structural evidence supports that the thiadiazole moiety engages in a rare intermolecular noncovalent sulfur-oxygen interaction. This thiadiazole series, exemplified by compounds 19 and 22 , has shown promise for potent, selective, orally bioavailable IRAK4 inhibitors.


  • Organizational Affiliation
    • Gilead Sciences Inc., 333 Lakeside Drive, Foster City, California 94404, United States.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

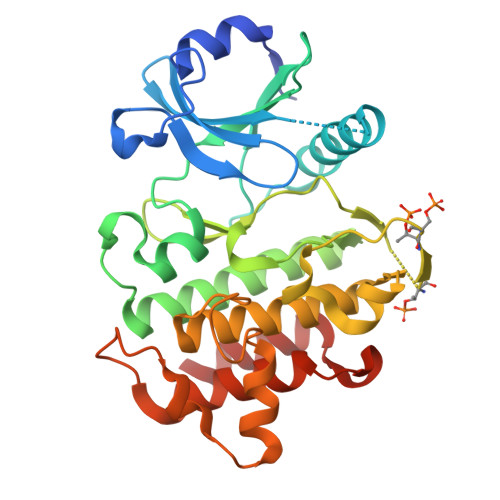

Interleukin-1 receptor-associated kinase 4
A, B
304Homo sapiensMutation(s): 0
Gene Names: IRAK4
EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NWZ3 (Homo sapiens)
Explore Q9NWZ3
Go to UniProtKB:  Q9NWZ3
PHAROS:  Q9NWZ3
GTEx:  ENSG00000198001
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NWZ3
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.93 Å
  • R-Value Free:  0.283 (Depositor), 0.282 (DCC)
  • R-Value Work:  0.247 (Depositor), 0.247 (DCC)
  • R-Value Observed: 0.248 (Depositor)
Space Group: I 2 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 86.63α = 90
b = 109.42β = 90
c = 141.08γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XSCALEdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data

  • Released Date: 2026-01-28
  • Deposition Author(s): Ferrao, R.

Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2026-01-28
    Type: Initial release
